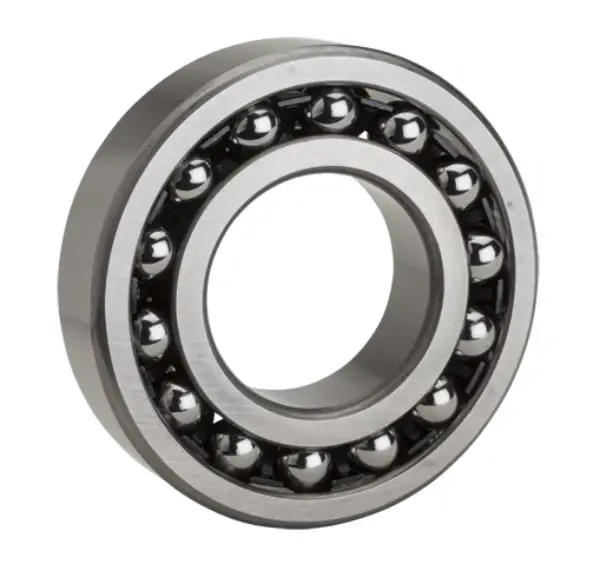

NTN 2211KEEG15
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Tapered
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Grease
6000 RPM
Y1
2.30
Y2
3.60
Y0
2.30
Taper
1:12
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
10000 N
Dynamic Load Rating
27000 N
Weight
0.808 kg
Operating Temperature Range
-40 to 120 ºC

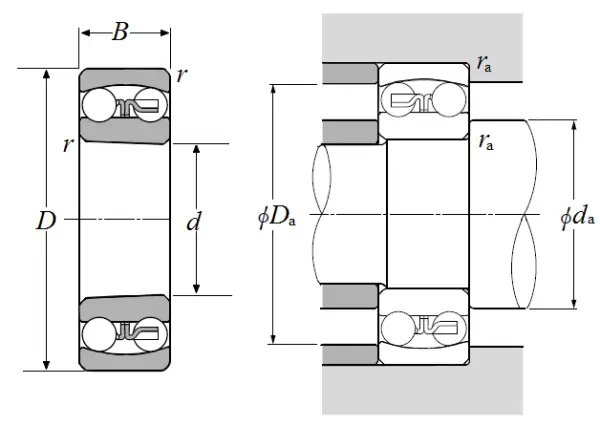

Dimensional Specifications
d
55.000 mm
D
100.000 mm
B
25.000 mm
r
1.500 mm
da min
63.000 mm
Da max
92.000 mm
ras max
1.500 mm
