NTN 2212EEG15
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Cylindrical
Material
Steel
Cage Type
One Piece
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Grease
3600 RPM
Y0
3.60
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
11500 N
Dynamic Load Rating
30200 N
Weight
1.130 kg
Operating Temperature Range
-40 to 120 ºC

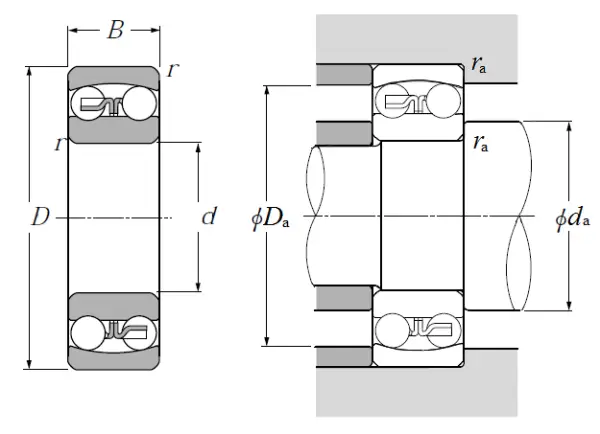

Dimensional Specifications
d
60.000 mm
D
110.000 mm
B
28.000 mm
r
1.500 mm
da min
68.000 mm
Da max
101.000 mm
