NTN 2216K
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Tapered
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
5000 RPM
Limiting Speed - Grease
4000 RPM
Y1
2.50
Y2
3.90
Y0
2.70
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
19900 N
Dynamic Load Rating
49000 N
Enclosure
Open
Weight
1.950 kg
Operating Temperature Range
-40 to 120 ºC

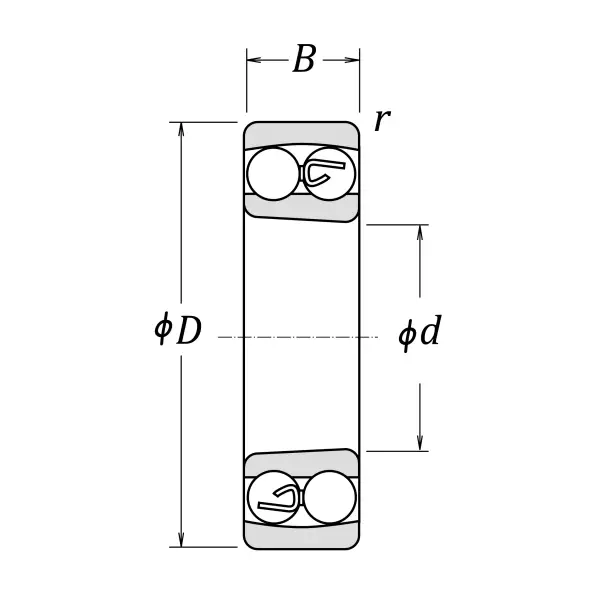

Dimensional Specifications
d
80.000 mm
D
140.000 mm
B
33.000 mm
r
2.000 mm

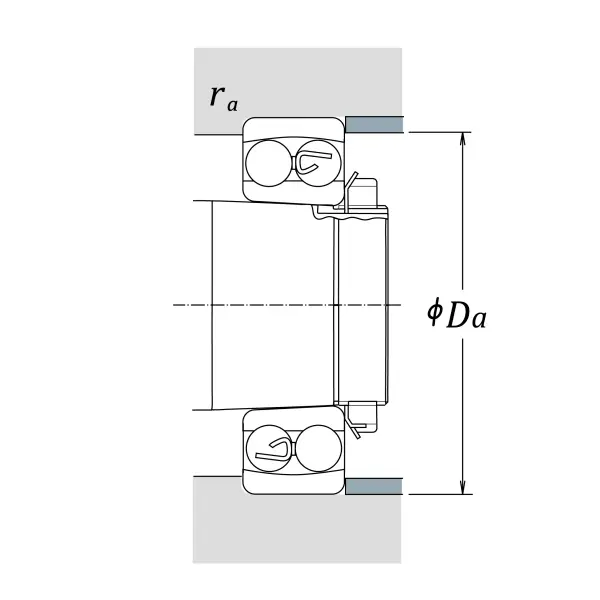

da min
89.000 mm
Da max
131.000 mm
ras max
2.000 mm
