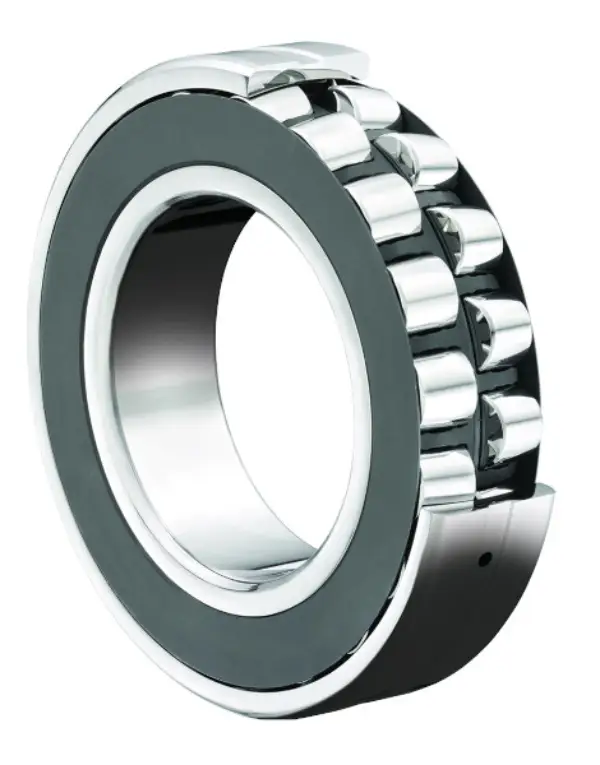

NTN 22210EAW33ZZ
Shielded Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
9100 RPM
Shield Material
Steel
Precision Rating
Standard
Ring Modification
Relube
Configuration
One
Static Load Rating
124000 N
Dynamic Load Rating
130000 N
Enclosure
Double Shielded
Weight
0.630 kg
Operating Temperature Range
-40 to 200 ºC

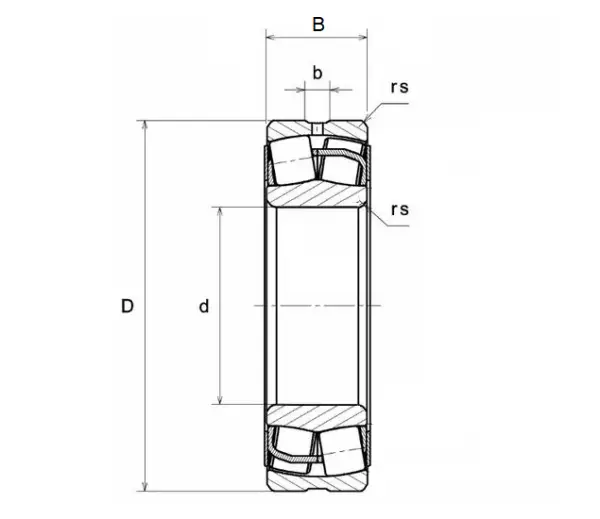

Dimensional Specifications
d
50.000 mm
D
90.000 mm
B
23.000 mm
rs
1.000 mm
b
5.800 mm
