NTN 22216EAKW33ZZ
Shielded Spherical Roller Bearings w/ Tapered Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Tapered
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
5800 RPM
Taper
1:12
Shield Material
Steel
Precision Rating
Standard
Ring Modification
Relube
Configuration
One
Static Load Rating
287000 N
Dynamic Load Rating
278000 N
Enclosure
Double Shielded
Weight
2.100 kg
Operating Temperature Range
-40 to 200 ºC

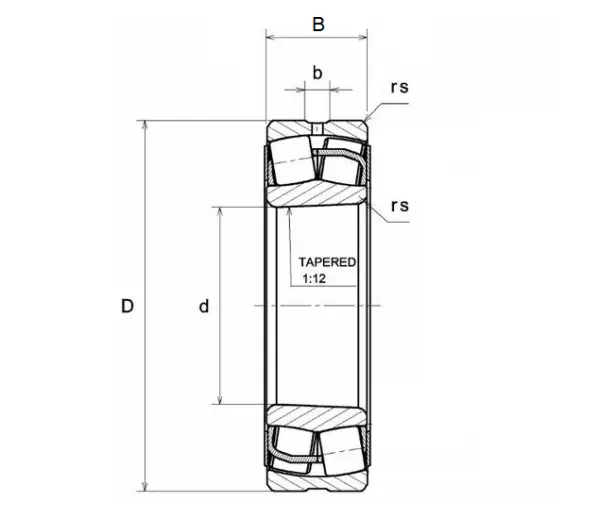

Dimensional Specifications
d
80.000 mm
D
140.000 mm
B
33.000 mm
rs
2.000 mm
b
7.870 mm
