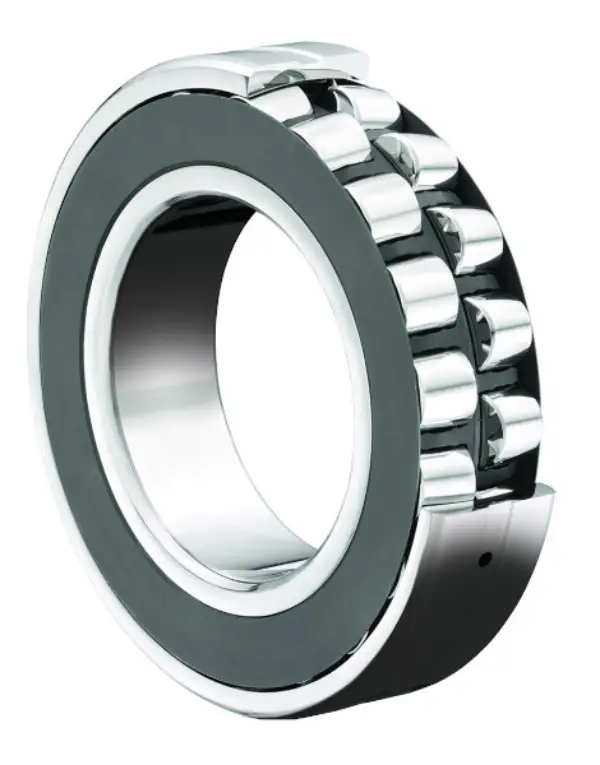

NTN 22220EAKW33ZZC3
Shielded Spherical Roller Bearings w/ Tapered Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Tapered
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
4600 RPM
Taper
1:12
Shield Material
Steel
Precision Rating
Standard
Ring Modification
Relube
Configuration
One
Radial Internal Clearance
C3
Static Load Rating
495000 N
Dynamic Load Rating
472000 N
Enclosure
Double Shielded
Weight
4.930 kg
Operating Temperature Range
-40 to 200 ºC

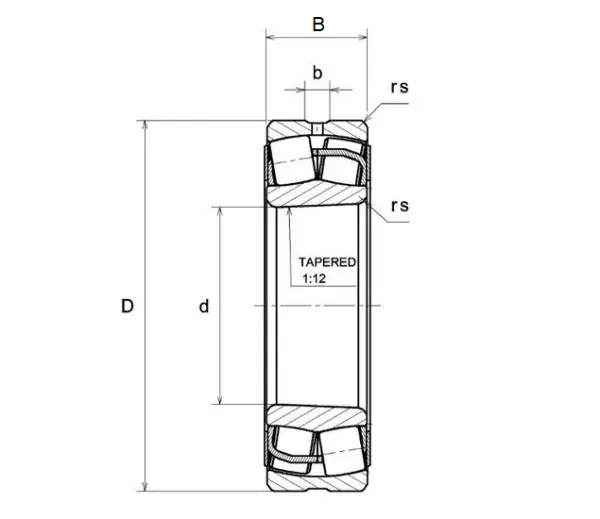

Dimensional Specifications
d
100.000 mm
D
180.000 mm
B
46.000 mm
rs
2.000 mm
b
11.200 mm
