NTN 22308EF800
Shaker Screen Spherical Roller Bearing w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Shaker Screen Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
Limiting Speed - Oil
7400 RPM
Limiting Speed - Grease
5800 RPM
e
0.36
Y1
1.87
Y2
2.79
Y0
1.83
Series
223
Radial Internal Clearance
Upper 2/3 of C4 range
Ring Modification
Plain
Tolerance
Special
Static Load Rating
152000 N
Dynamic Load Rating
169000 N
Enclosure
Open
Weight
1.020 kg
Operating Temperature Range
-40 to 200 ºC

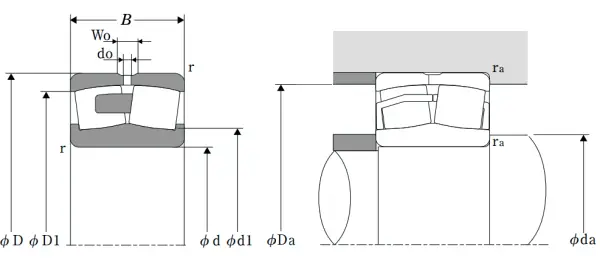

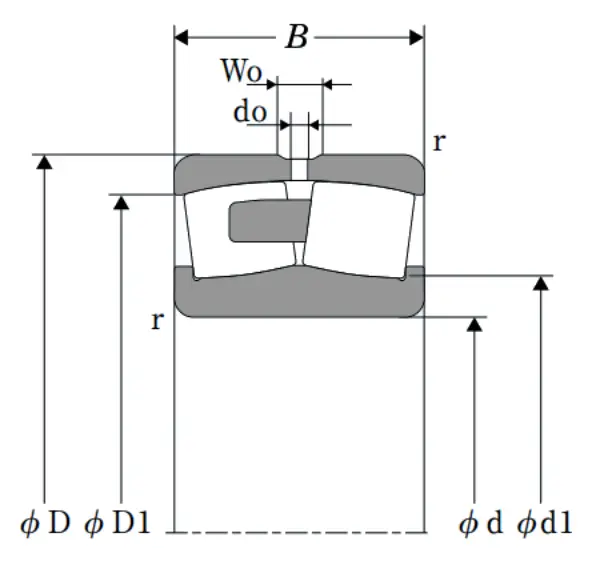

Dimensional Specifications
d
40.000 mm
D
90.000 mm
B
33.000 mm
d1
52.000 mm
D1
78.000 mm
r
1.500 mm
W0
5.900 mm
d0
3.000 mm
da min
49.000 mm
Da max
81.000 mm
ras max
1.500 mm
