NTN 22309EF800
Shaker Screen Spherical Roller Bearing w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Shaker Screen Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
Limiting Speed - Oil
5700 RPM
Limiting Speed - Grease
4600 RPM
Series
223
Radial Internal Clearance
C4
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Static Load Rating
187000 N
Dynamic Load Rating
196000 N
Enclosure
Open
Weight
1.369 kg
Operating Temperature Range
-40 to 200 ºC

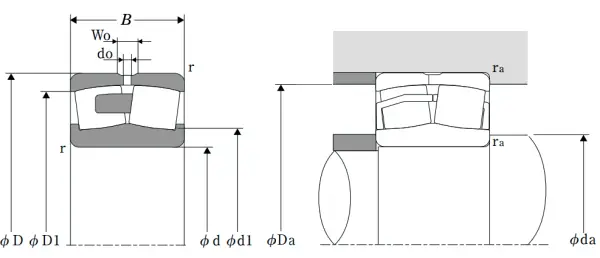

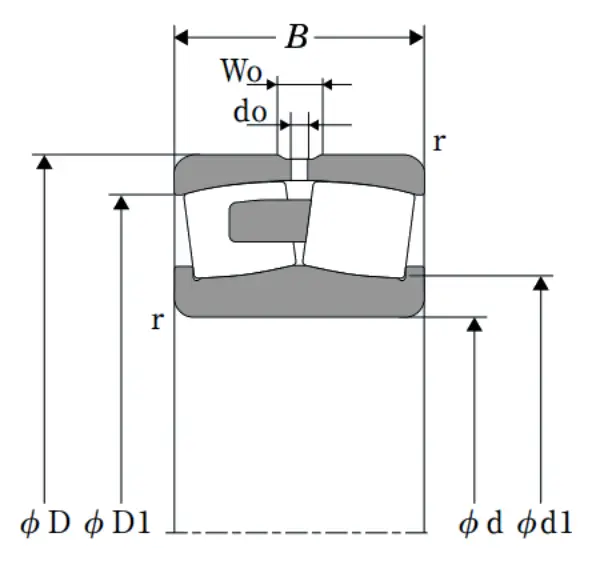

Dimensional Specifications
d
45.000 mm
D
100.000 mm
B
36.000 mm
d1
59.000 mm
D1
87.000 mm
r
1.500 mm
W0
6.400 mm
d0
3.000 mm
da min
54.000 mm
Da max
91.000 mm
