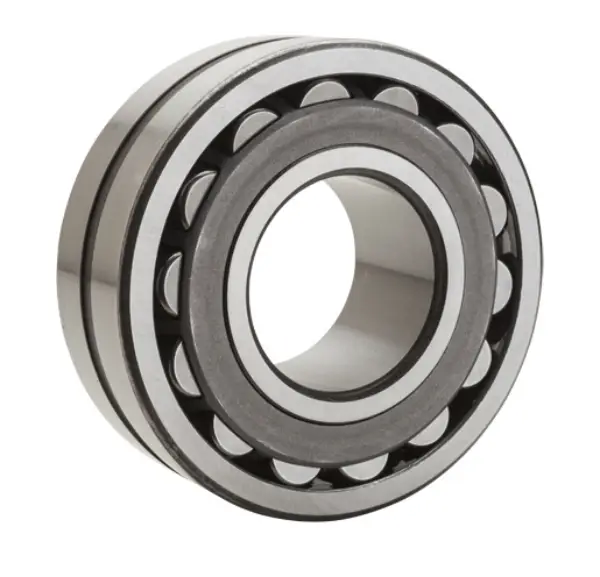

NTN 22311BVS1
Shaker Screen Spherical Roller Bearing w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Shaker Screen Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
e
0.40
Y1
1.68
Y2
2.50
Y0
1.64
Series
223
Radial Internal Clearance
CN
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Enclosure
Open
Weight
2.400 kg
Operating Temperature Range
-40 to 120 ºC

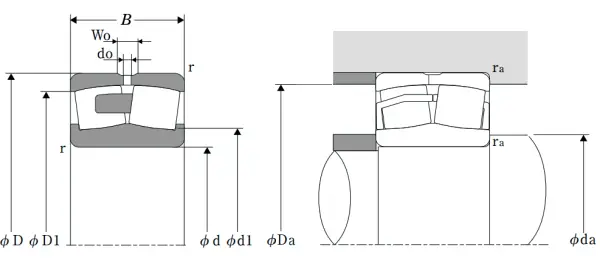

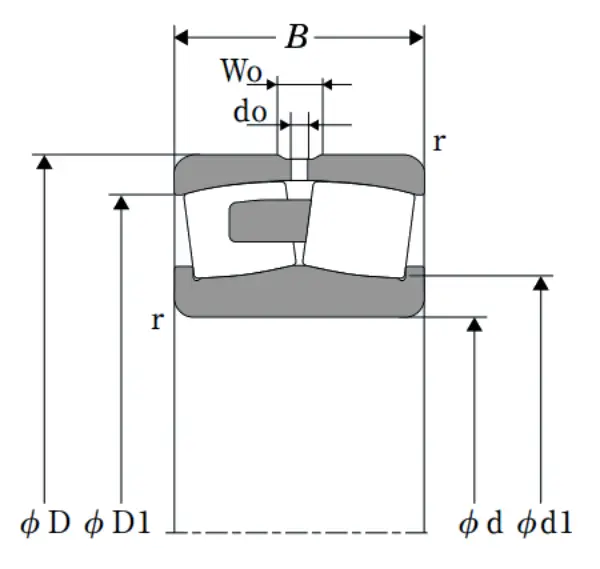

Dimensional Specifications
d
55.000 mm
D
120.000 mm
B
43.000 mm
r
2.000 mm
W0
7.000 mm
d0
4.000 mm
da min
65.000 mm
Da max
110.000 mm
ras max
2.000 mm
