NTN 22311EF800
Shaker Screen Spherical Roller Bearing w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Shaker Screen Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
Limiting Speed - Oil
5600 RPM
Limiting Speed - Grease
4600 RPM
e
0.36
Y1
1.87
Y2
2.79
Y0
1.83
Series
223
Radial Internal Clearance
Upper 2/3 of C4 range
Ring Modification
Plain
Tolerance
Special
Static Load Rating
274000 N
Dynamic Load Rating
296000 N
Enclosure
Open
Weight
2.340 kg
Operating Temperature Range
-40 to 200 ºC

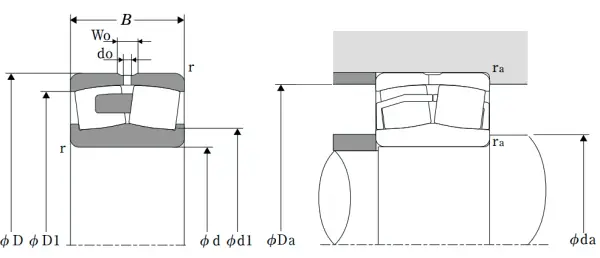

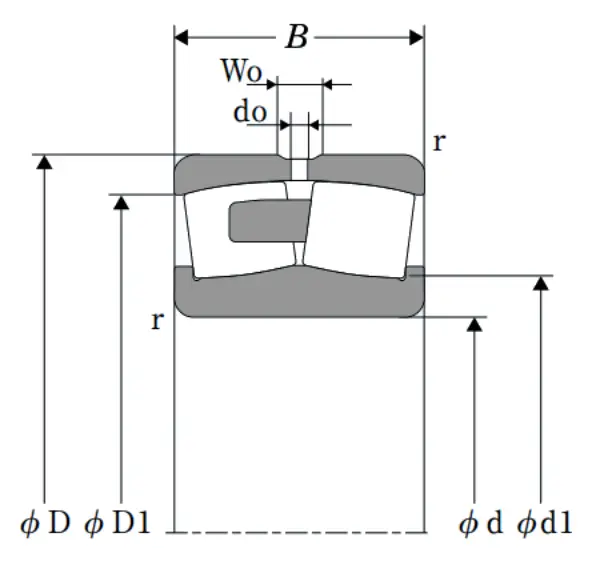

Dimensional Specifications
d
55.000 mm
D
120.000 mm
B
43.000 mm
d1
68.000 mm
D1
104.000 mm
r
2.000 mm
W0
7.800 mm
d0
3.500 mm
da min
66.000 mm
Da max
109.000 mm
ras max
2.000 mm
