NTN 22312BVS1
Shaker Screen Spherical Roller Bearing w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Shaker Screen Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
e
0.42
Y1
1.62
Y2
2.42
Y0
1.59
Series
223
Radial Internal Clearance
CN
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Enclosure
Open
Weight
3.060 kg
Operating Temperature Range
-40 to 120 ºC

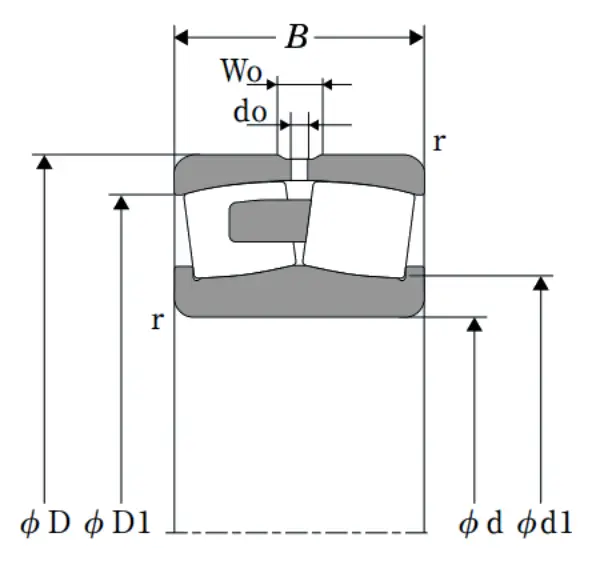

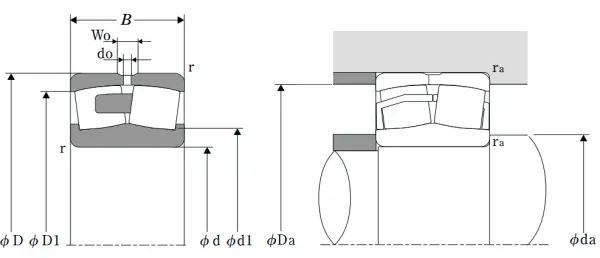

Dimensional Specifications
d
60.000 mm
D
130.000 mm
B
46.000 mm
r
2.100 mm
W0
9.000 mm
d0
5.000 mm
da min
72.000 mm
Da max
118.000 mm
ras max
2.000 mm
