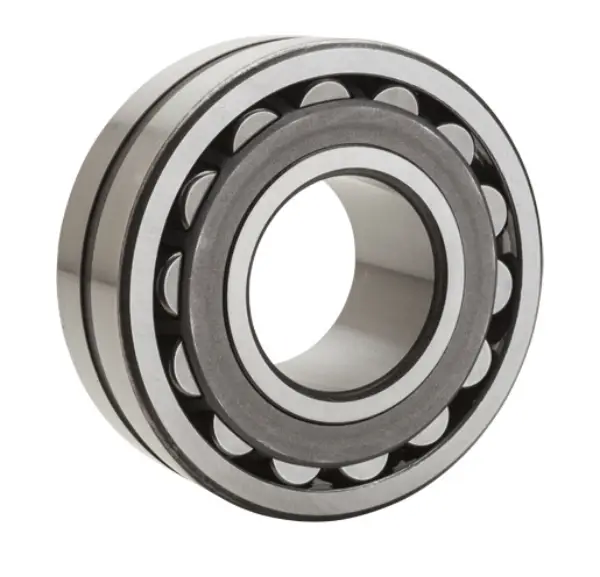

NTN 22315UAVS2
Shaker Screen Spherical Roller Bearing w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Shaker Screen Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
Limiting Speed - Oil
2600 RPM
Limiting Speed - Grease
1800 RPM
Series
223
Radial Internal Clearance
Upper 2/3 of C4 range
Ring Modification
Plain
Tolerance
Special
Static Load Rating
320000 N
Dynamic Load Rating
335000 N
Enclosure
Open
Weight
5.470 kg
Operating Temperature Range
-40 to 120 ºC

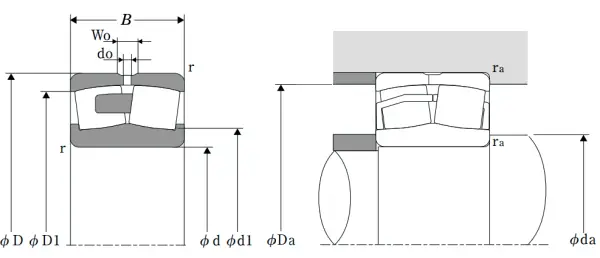

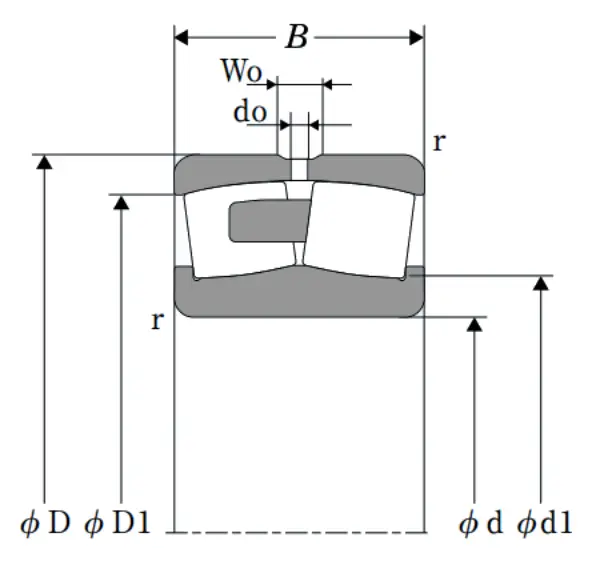

Dimensional Specifications
d
75.000 mm
D
160.000 mm
B
55.000 mm
d1
91.000 mm
D1
139.000 mm
r
2.100 mm
W0
5.000 mm
