NTN 22318UAVS2
Shaker Screen Spherical Roller Bearing w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Shaker Screen Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
Limiting Speed - Oil
2200 RPM
Limiting Speed - Grease
1500 RPM
Series
223
Radial Internal Clearance
Upper 2/3 of C4 range
Ring Modification
Plain
Tolerance
Special
Static Load Rating
425000 N
Dynamic Load Rating
450000 N
Enclosure
Open
Weight
8.660 kg
Operating Temperature Range
-40 to 120 ºC

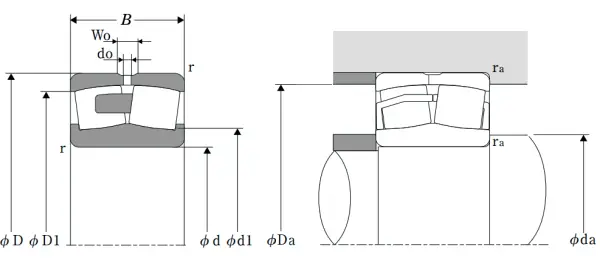

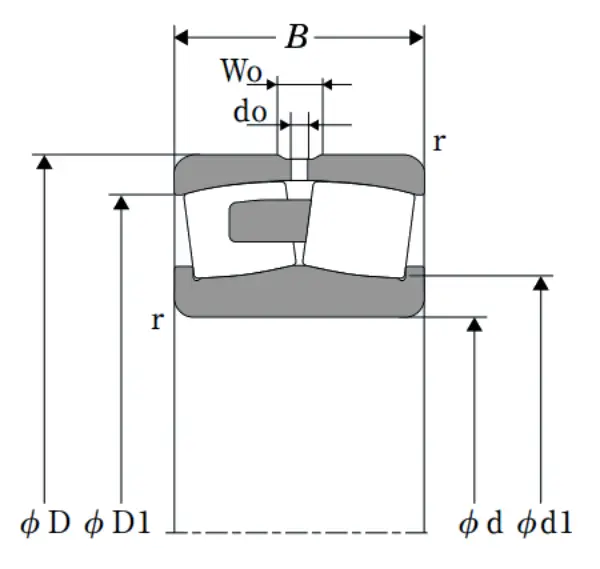

Dimensional Specifications
d
90.000 mm
D
190.000 mm
B
64.000 mm
d1
110.000 mm
D1
166.000 mm
r
3.000 mm
W0
5.000 mm
