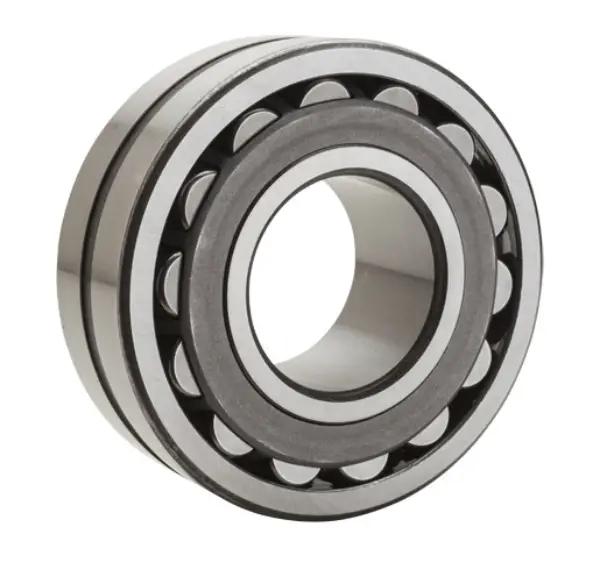

NTN 22319UAVS2
Shaker Screen Spherical Roller Bearing w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Shaker Screen Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
Limiting Speed - Oil
2000 RPM
Limiting Speed - Grease
1400 RPM
Series
223
Radial Internal Clearance
Upper 2/3 of C4 range
Ring Modification
Plain
Tolerance
Special
Static Load Rating
465000 N
Dynamic Load Rating
490000 N
Enclosure
Open
Weight
10.400 kg
Operating Temperature Range
-40 to 120 ºC

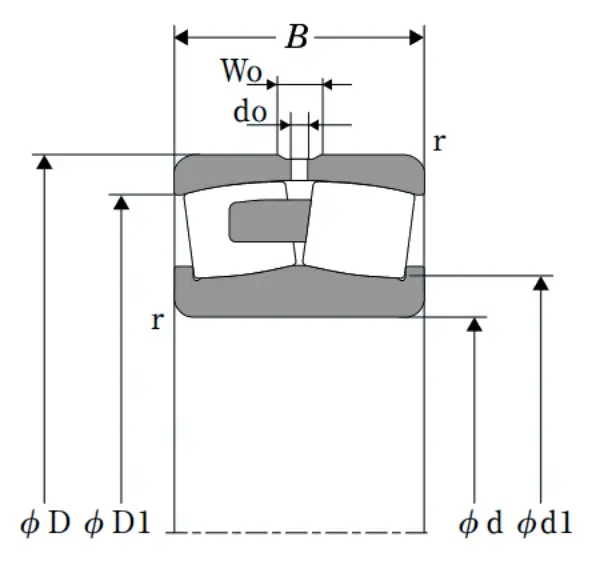

Dimensional Specifications
d
95.000 mm
D
200.000 mm
B
67.000 mm
d1
120.000 mm
D1
186.000 mm
r
3.000 mm
W0
6.000 mm
