NTN 22322UAVS2

Shaker Screen Spherical Roller Bearing w/ Standard Bore

(BRAND):NTN
(Availability):In Stock
(EMAIL):info@noksbearings.com

Technical Specifications

Type Shaker Screen Spherical Roller Bearing
Bore Type Round
Material Through Hardened Steel
Cage Type Machined
Cage Material Brass
Limiting Speed - Oil 1700 RPM
Limiting Speed - Grease 1200 RPM
Series 223
Radial Internal Clearance Upper 2/3 of C4 range
Ring Modification Plain
Tolerance Special
Static Load Rating 710000 N
Dynamic Load Rating 730000 N
Enclosure Open
Weight 18.120 kg
Operating Temperature Range -40 to 120 ºC

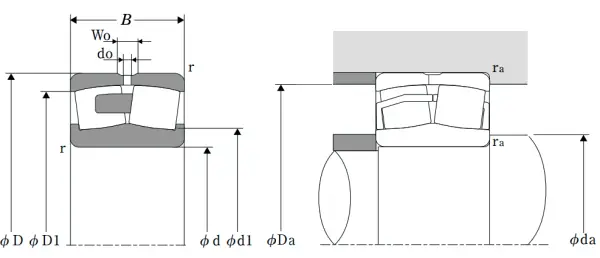

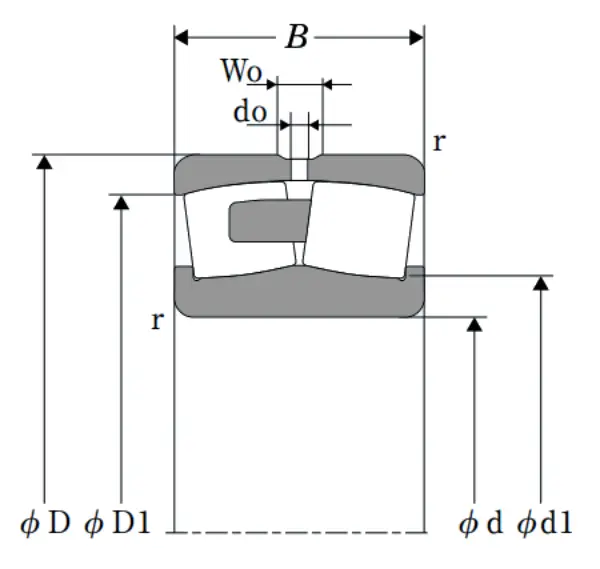

Dimensional Specifications

d 110.000 mm
D 240.000 mm
B 80.000 mm
d1 139.000 mm
D1 209.000 mm
r 3.000 mm
W0 7.000 mm
