NTN 22324EMKW33
Spherical Roller Bearings w/ Tapered Bore
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Tapered
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
Limiting Speed - Oil
2200 RPM
Limiting Speed - Grease
1800 RPM
e
0.32
Y1
2.09
Y2
3.11
Y0
2.04
Series
223
Radial Internal Clearance
CN
Ring Modification
Relube
Tolerance
JIS-0 RBEC-1
Taper
1:12
Static Load Rating
1280000 N
Dynamic Load Rating
1170000 N
Enclosure
Open
Weight
22.200 kg
Operating Temperature Range
-40 to 200 ºC

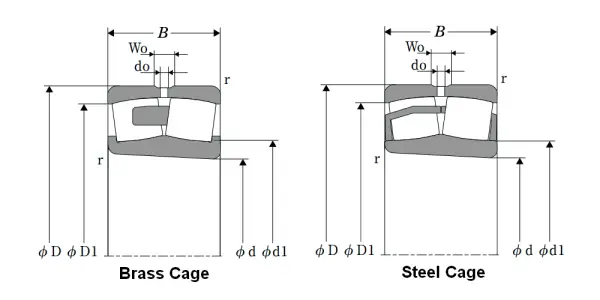

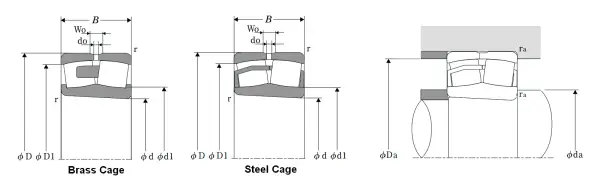

Dimensional Specifications
d
120.000 mm
D
260.000 mm
B
86.000 mm
d1
156.000 mm
D1
225.000 mm
r
3.000 mm
W0
18.000 mm
d0
8.000 mm
da min
134.000 mm
Da max
246.000 mm
ras max
3 mm
