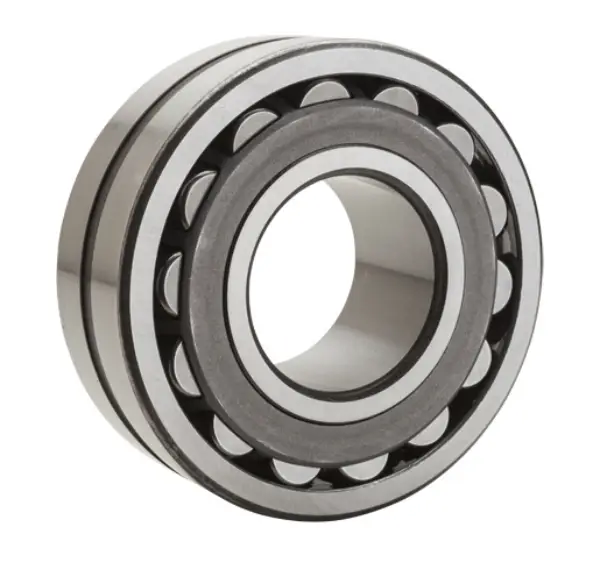

NTN 22328UAVS2
Shaker Screen Spherical Roller Bearing w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Shaker Screen Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
Limiting Speed - Oil
1300 RPM
Limiting Speed - Grease
940 RPM
Series
223
Radial Internal Clearance
Upper 2/3 of C4 range
Ring Modification
Plain
Tolerance
Special
Static Load Rating
1110000 N
Dynamic Load Rating
1110000 N
Enclosure
Open
Weight
36.100 kg
Operating Temperature Range
-40 to 120 ºC

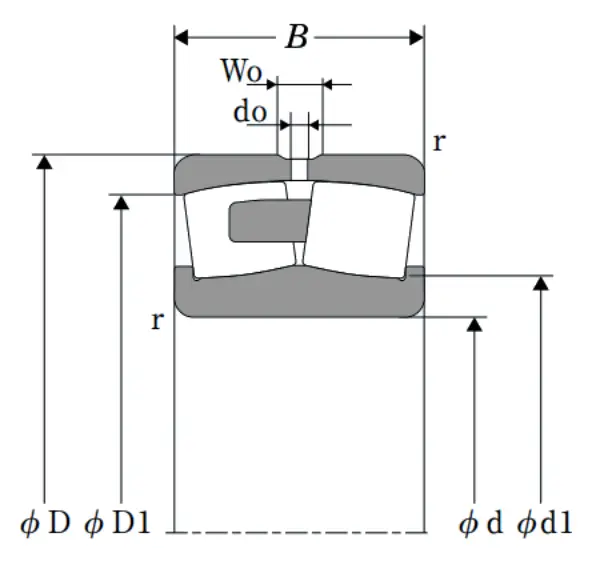

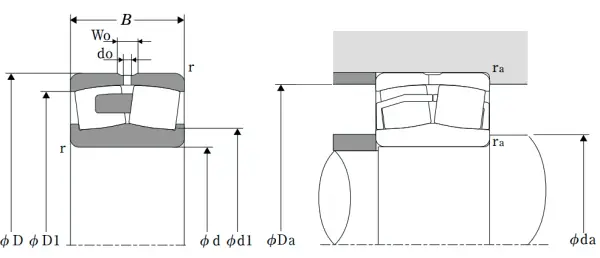

Dimensional Specifications
d
140.000 mm
D
300.000 mm
B
102.000 mm
d1
181.000 mm
D1
261.000 mm
r
4.000 mm
W0
9.000 mm
