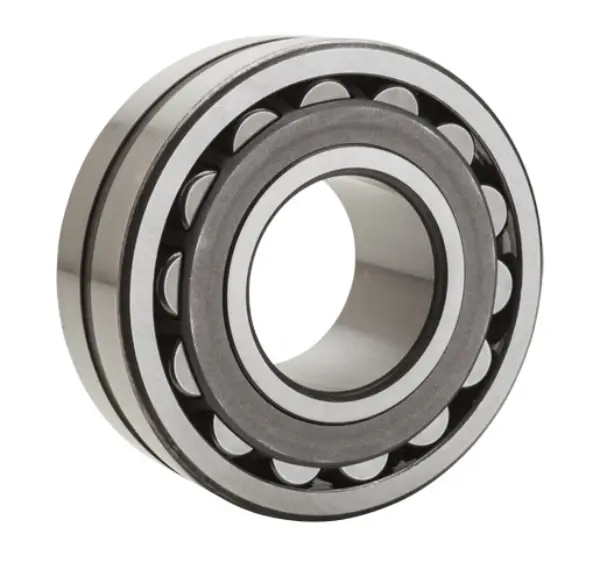

NTN 22336EMAD1VS2
Shaker Screen Spherical Roller Bearing w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Shaker Screen Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
Limiting Speed - Oil
1000 RPM
Series
223
Radial Internal Clearance
Upper 2/3 of C4 range
Ring Modification
Relube
Tolerance
Special
Static Load Rating
1870000 N
Dynamic Load Rating
1670000 N
Enclosure
Open
Weight
71.400 kg

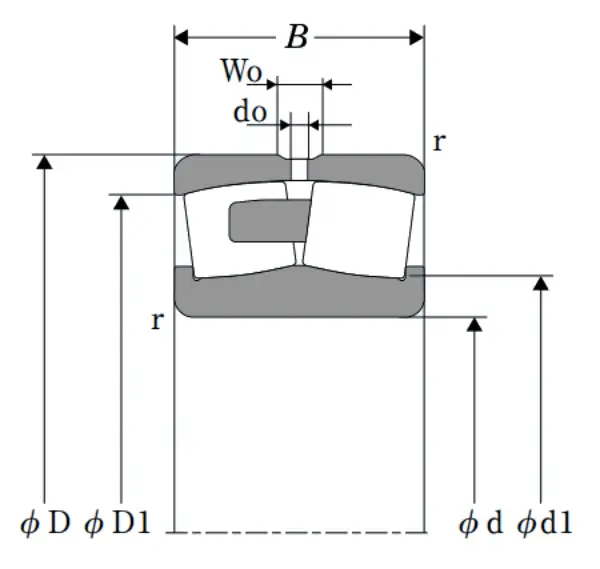

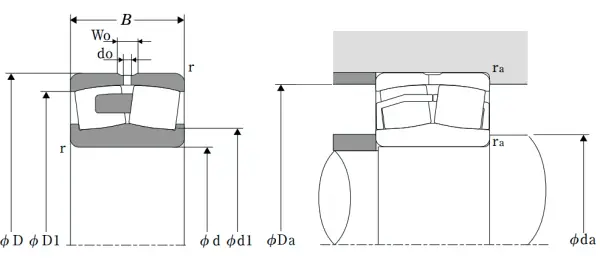

Dimensional Specifications
d
180.000 mm
D
380.000 mm
B
126.000 mm
r
4.000 mm
W0
12.000 mm
