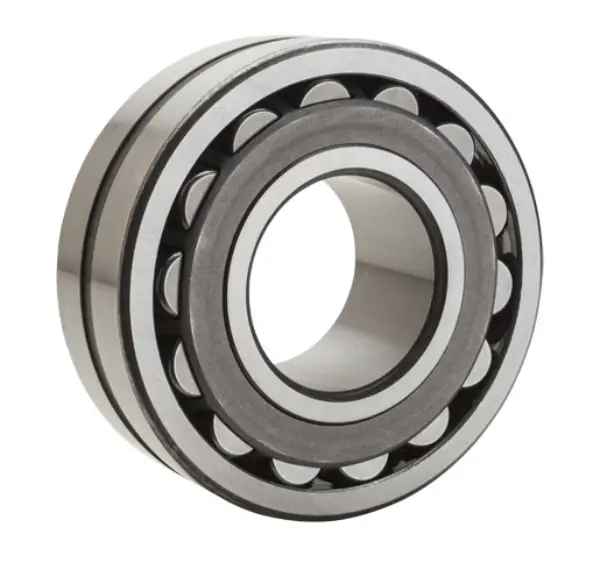

NTN 22338UAVS1
Shaker Screen Spherical Roller Bearing w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Shaker Screen Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
Series
223
Radial Internal Clearance
CN
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Static Load Rating
3200000 N
Dynamic Load Rating
2090000 N
Enclosure
Open
Weight
82.600 kg
Operating Temperature Range
-40 to 120 ºC

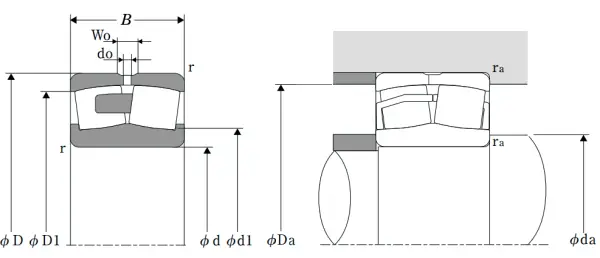

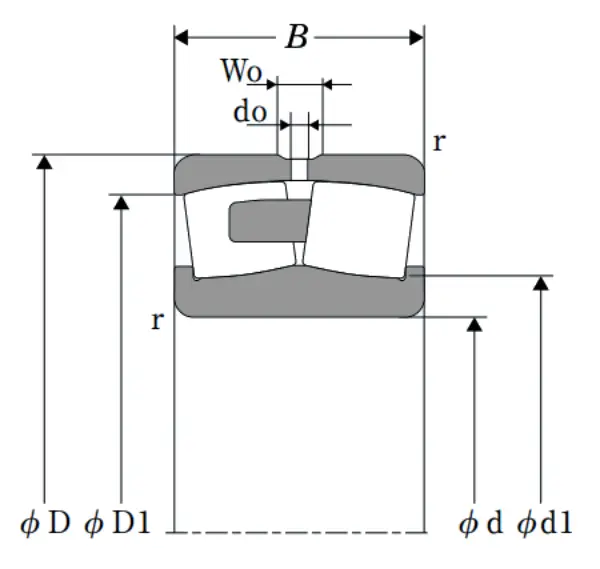

Dimensional Specifications
d
190.000 mm
D
400.000 mm
B
132.000 mm
r
5.000 mm
W0
12.000 mm
