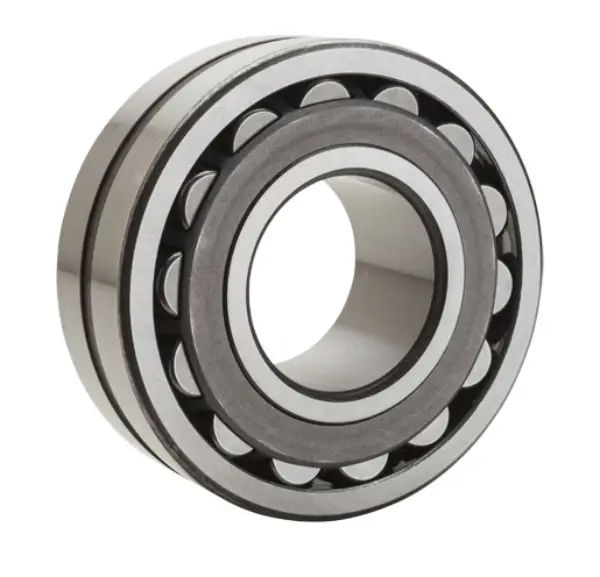

NTN 22340EMAD1VS2
Shaker Screen Spherical Roller Bearing w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Shaker Screen Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
Limiting Speed - Oil
910 RPM
Series
223
Radial Internal Clearance
Upper 2/3 of C4 range
Ring Modification
Relube
Tolerance
Special
Static Load Rating
2180000 N
Dynamic Load Rating
1940000 N
Enclosure
Open
Weight
95.200 kg
Dimensional Specifications
d
200.000 mm
D
420.000 mm
B
138.000 mm
r
5.000 mm
W0
12.000 mm
