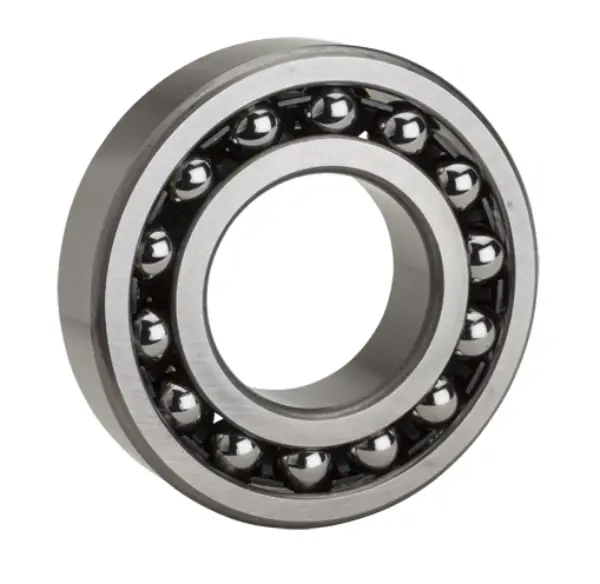

NTN 2303KC3
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Tapered
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
16000 RPM
Limiting Speed - Grease
13000 RPM
Y1
1.20
Y2
1.90
Y0
1.3
Taper
1:12
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Radial Internal Clearance
C3
Static Load Rating
3550 N
Dynamic Load Rating
14700 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

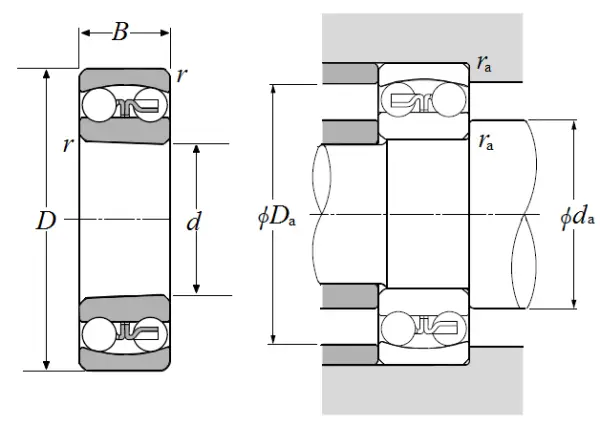

Dimensional Specifications
d
17.000 mm
D
47.000 mm
B
19.000 mm
r
1.000 mm
da min
22.000 mm
Da max
42.000 mm
ras max
1.000 mm
