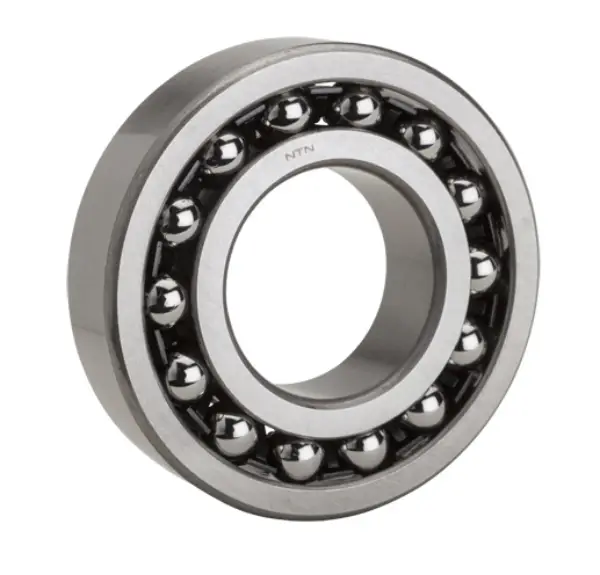

NTN 2308L1C3
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Cylindrical
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
8000 RPM
Limiting Speed - Grease
6300 RPM
Y1
1.50
Y2
2.30
Y0
1.50
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Radial Internal Clearance
C3
Static Load Rating
13500 N
Dynamic Load Rating
45500 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

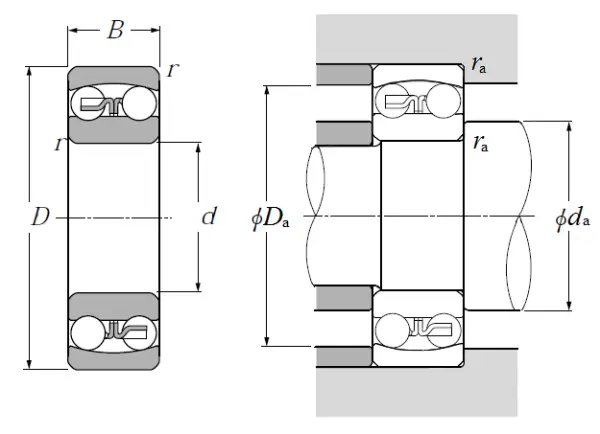

Dimensional Specifications
d
40.000 mm
D
90.000 mm
B
33.000 mm
r
1.500 mm
da min
48.000 mm
Da max
82.000 mm
ras max
1.500 mm
