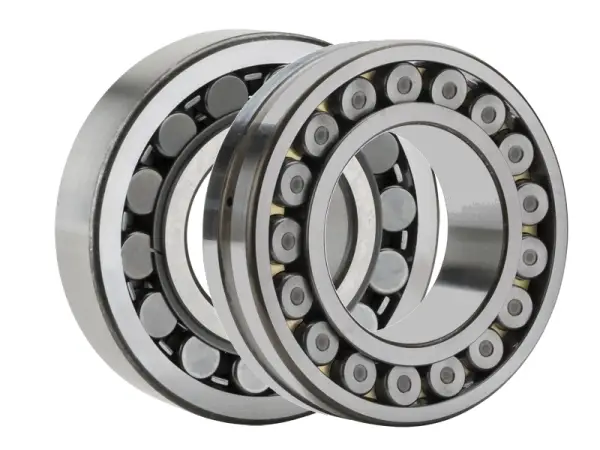

NTN 23122EKMA41
Spherical Roller Bearings w/ Tapered Bore
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Tapered
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
e
0.28
Y1
2.43
Y2
3.61
Y0
2.37
Series
231
Radial Internal Clearance
CN
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Taper
1:12
Enclosure
Open
Operating Temperature Range
-40 to 200 ºC

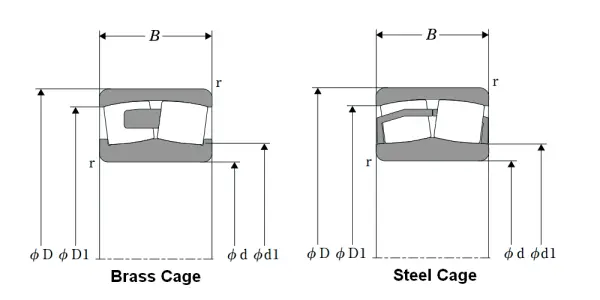

Dimensional Specifications
d
110.000 mm
D
180.000 mm
B
56.000 mm
d1
125.000 mm
D1
161.000 mm
r
2.000 mm
da min
121.000 mm
Da max
169.000 mm
ras max
2.000 mm
