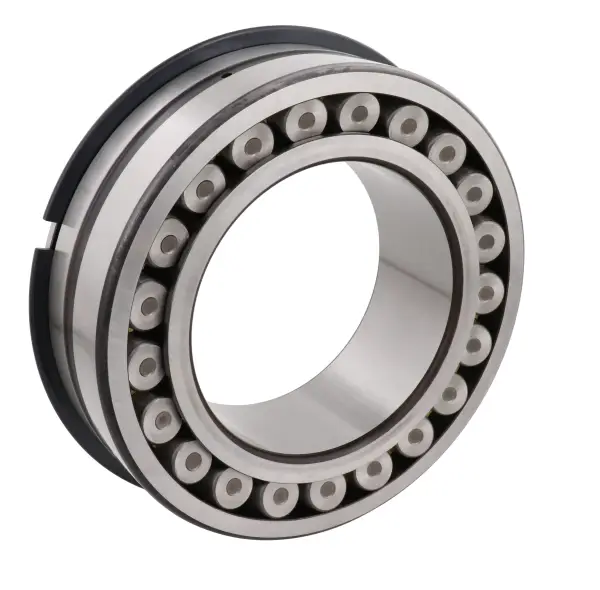

NTN 23124EMNRW33
Spherical Roller Bearings w/ Snap Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
Limiting Speed - Oil
2500 RPM
Limiting Speed - Grease
2000 RPM
Seal Type
None
Seal Material
None
Series
231
Precision
Standard
Tolerance
JIS-0 RBEC-1
Ring Modification
Snap Ring
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
820000 N
Dynamic Load Rating
663000 N
Enclosure
Open
Weight
7.700 kg
Operating Temperature Range
-40 to 200 ºC
Dimensional Specifications
d
120.000 mm
D
200.000 mm
B
62.000 mm
d1
138.000 mm
D1
179.000 mm
D2
212.900 mm
D3
192.800 mm
r
2.000 mm
a
5.440 mm
f
3.050 mm
W0
10.000 mm
