NTN 23128BF3NXRX
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
e
0.30
Y1
2.25
Y2
3.35
Y0
2.20
Series
231
Radial Internal Clearance
CN
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Enclosure
Open
Weight
10.600 kg
Operating Temperature Range
-40 to 120 ºC

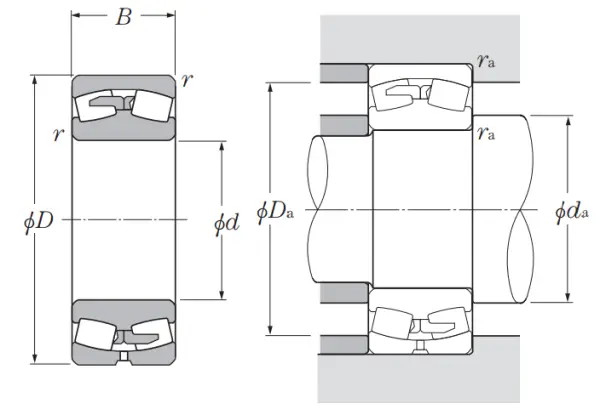

Dimensional Specifications
d
140.000 mm
D
225.000 mm
B
68.000 mm
r
2.100 mm
da min
152.000 mm
Da max
213.000 mm
ras max
2.000 mm
