NTN 23128EAW33C3
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
2200 RPM
Limiting Speed - Grease
1800 RPM
e
0.26
Y1
2.55
Y2
3.80
Y0
2.50
Series
231
Radial Internal Clearance
C3
Ring Modification
Relube
Tolerance
JIS-0 RBEC-1
Static Load Rating
1030000 N
Dynamic Load Rating
802000 N
Enclosure
Open
Weight
10.300 kg
Operating Temperature Range
-40 to 200 ºC

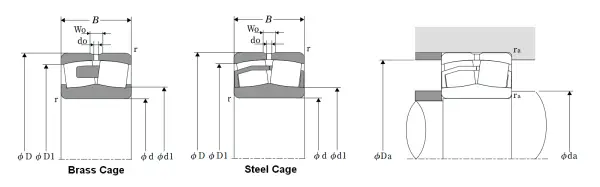

Dimensional Specifications
d
140.000 mm
D
225.000 mm
B
68.000 mm
d1
159.000 mm
D1
203.000 mm
r
2.100 mm
W0
11.000 mm
d0
5.000 mm
da min
152.000 mm
Da max
213.000 mm
ras max
2.100 mm
