NTN 23148EMW33
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
Limiting Speed - Oil
1200 RPM
Limiting Speed - Grease
960 RPM
e
0.29
Y1
2.32
Y2
3.45
Y0
2.26
Series
231
Radial Internal Clearance
CN
Ring Modification
Relube
Tolerance
JIS-0 RBEC-1
Static Load Rating
3500000 N
Dynamic Load Rating
2510000 N
Enclosure
Open
Weight
64.720 kg
Operating Temperature Range
-40 to 200 ºC

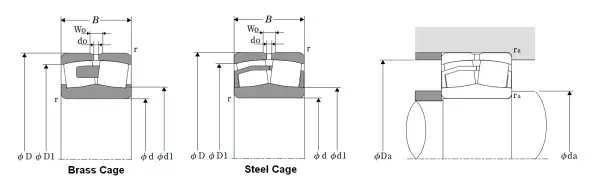

Dimensional Specifications
d
240.000 mm
D
400.000 mm
B
128.000 mm
d1
276.000 mm
D1
356.000 mm
r
4.000 mm
W0
20.000 mm
d0
9.000 mm
da min
257.000 mm
Da max
383.000 mm
ras max
4.000 mm
