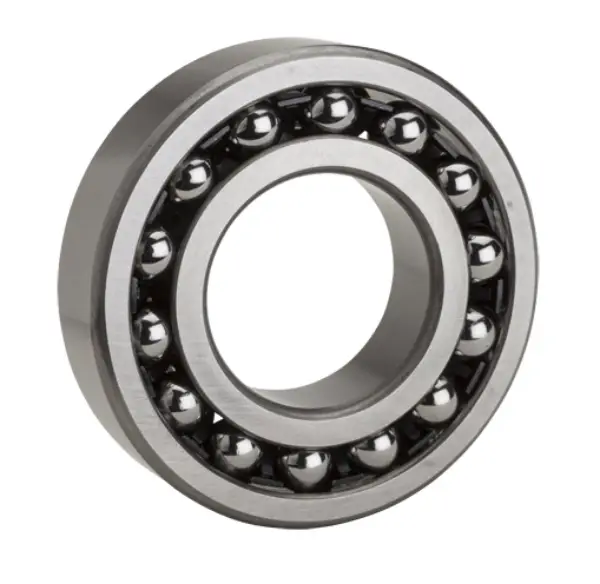

NTN 2315KC3
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Tapered
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
4300 RPM
Limiting Speed - Grease
3400 RPM
Y1
1.60
Y2
2.50
Y0
1.70
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Radial Internal Clearance
C3
Static Load Rating
43000 N
Dynamic Load Rating
125000 N
Enclosure
Open
Weight
4.634 kg
Operating Temperature Range
-40 to 120 ºC

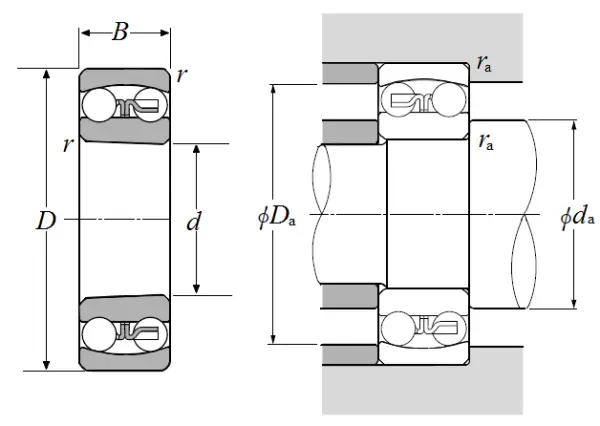

Dimensional Specifications
d
75.000 mm
D
160.000 mm
B
55.000 mm
r
2.100 mm
da min
86.000 mm
Da max
149.000 mm
ras max
2.000 mm
