NTN 23176BL1W-2W33C3
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
e
0.31
Y1
2.16
Y2
3.22
Y0
2.12
Series
231
Radial Internal Clearance
C3
Ring Modification
Relube
Enclosure
Open
Weight
255.000 kg
Operating Temperature Range
-40 to 120 ºC

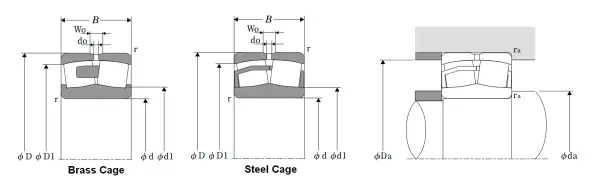

Dimensional Specifications
d
380.000 mm
D
620.000 mm
B
194.000 mm
r
5.000 mm
W0
20.000 mm
d0
16.000 mm
da min
402.000 mm
Da max
598.000 mm
ras max
4.000 mm
