NTN 23188BL1W33C3
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
Limiting Speed - Oil
500 RPM
Limiting Speed - Grease
390 RPM
e
0.31
Y1
2.15
Y2
3.21
Y0
2.11
Series
231
Radial Internal Clearance
C3
Ring Modification
Relube
Tolerance
JIS-0 RBEC-1
Static Load Rating
10100000 N
Dynamic Load Rating
5200000 N
Enclosure
Open
Weight
370.000 kg
Operating Temperature Range
-40 to 120 ºC

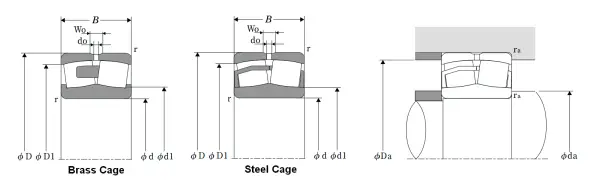

Dimensional Specifications
d
440.000 mm
D
720.000 mm
B
226.000 mm
r
6.000 mm
W0
33.000 mm
d0
20.000 mm
da min
468.000 mm
Da max
692.000 mm
ras max
5.000 mm
