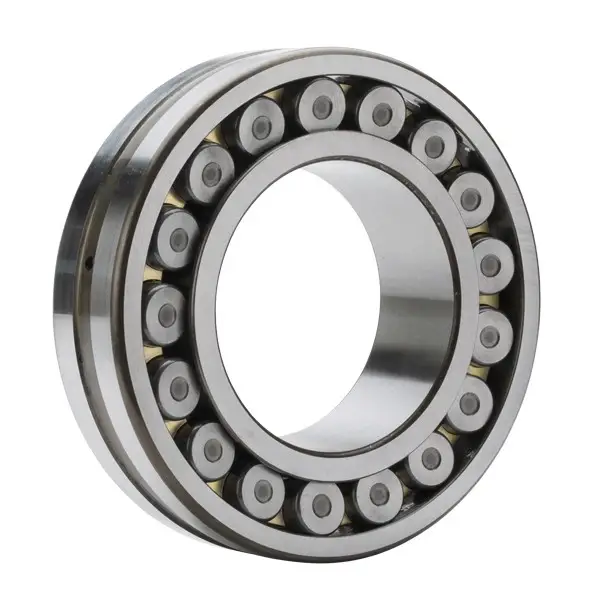

NTN 23224EAKW33C3
Spherical Roller Bearings w/ Tapered Bore
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Tapered
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
e
0.32
Y1
2.09
Y2
3.11
Y0
2.04
Series
232
Radial Internal Clearance
C3
Ring Modification
Relube
Tolerance
JIS-0 RBEC-1
Taper
1:12
Enclosure
Open
Weight
11.620 kg
Operating Temperature Range
-40 to 200 ºC

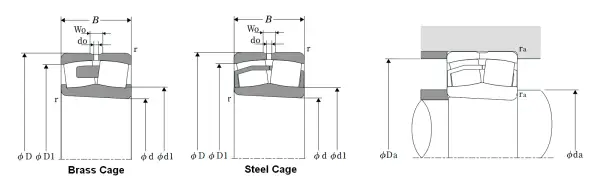

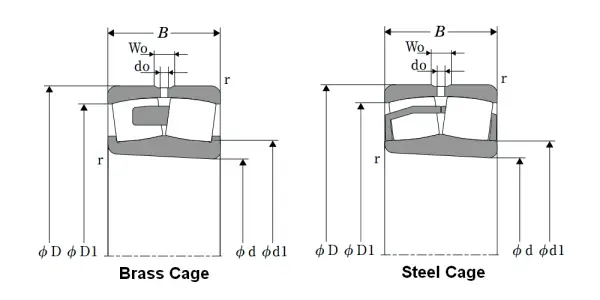

Dimensional Specifications
d
120.000 mm
D
215.000 mm
B
76.000 mm
d1
139.000 mm
D1
190.000 mm
r
2.100 mm
W0
11.000 mm
d0
5.000 mm
da min
132.000 mm
Da max
203.000 mm
ras max
2.100 mm
