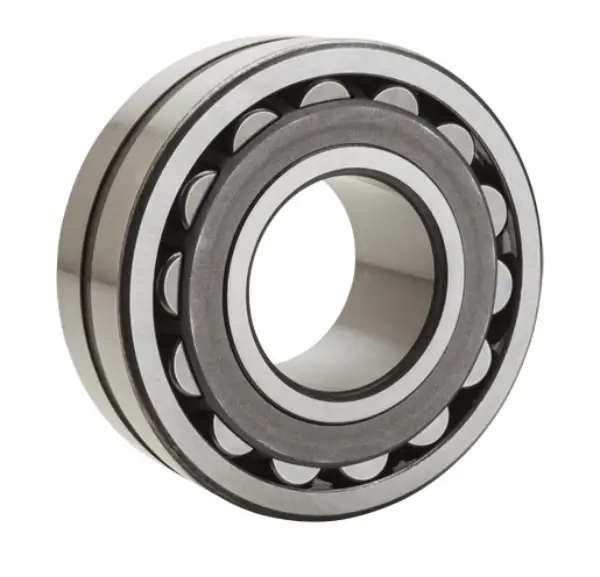

NTN 23318VS2
Shaker Screen Spherical Roller Bearing w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Shaker Screen Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
Series
233
Radial Internal Clearance
Special
Radial Internal Clearance Specification
Upper 2/3 of C4 range
Ring Modification
Plain
Static Load Rating
650000 N
Dynamic Load Rating
495000 N
Enclosure
Open
Weight
10.100 kg
Operating Temperature Range
-40 to 120 ºC

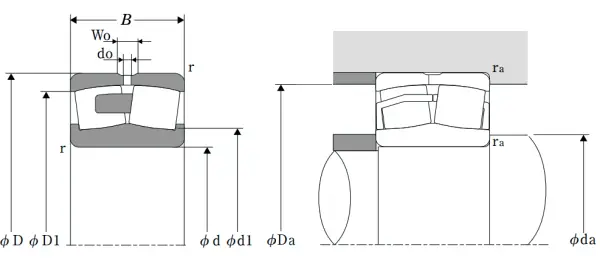

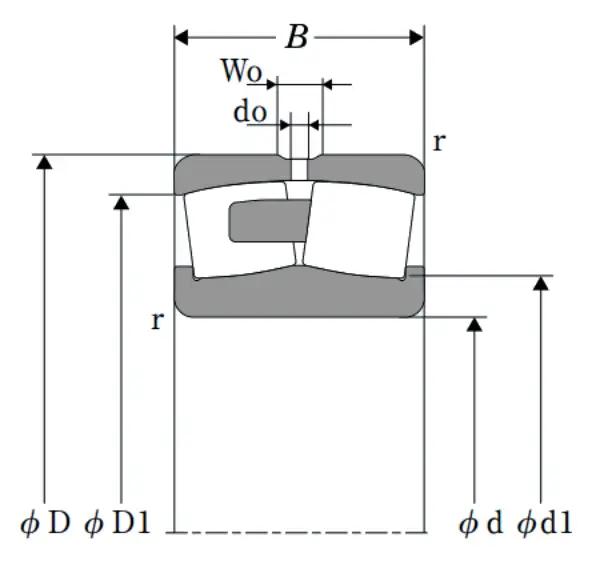

Dimensional Specifications
d
90.000 mm
D
190.000 mm
B
73.000 mm
d1
121.500 mm
D1
155.800 mm
r
3.000 mm
W0
11.000 mm
