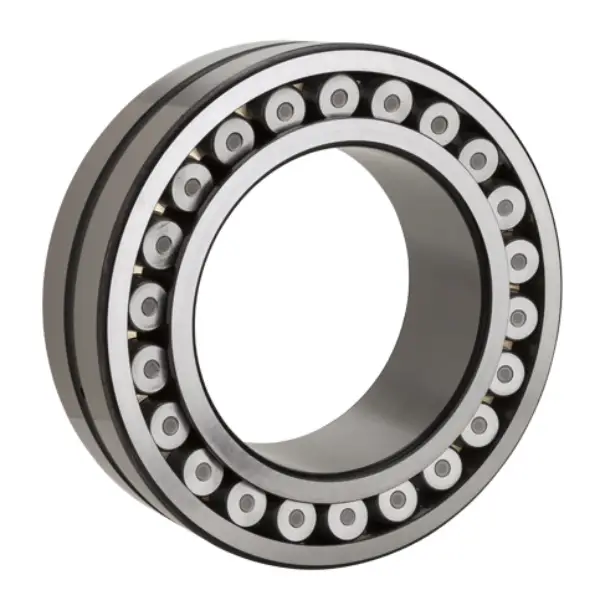

NTN 23936W33
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Steel
Limiting Speed - Oil
1800 RPM
Limiting Speed - Grease
1400 RPM
Series
239
Radial Internal Clearance
CN
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Static Load Rating
835000 N
Dynamic Load Rating
440000 N
Enclosure
Open
Weight
7.790 kg

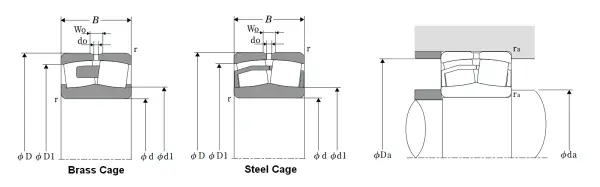

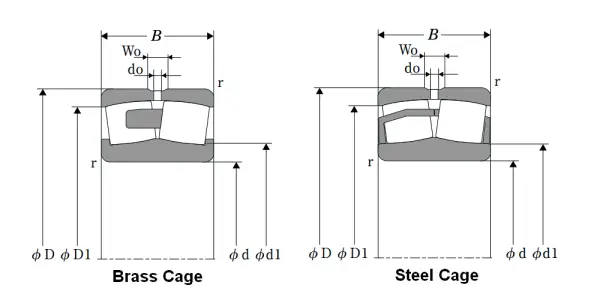

Dimensional Specifications
d
180.000 mm
D
250.000 mm
B
52.000 mm
r
2.000 mm
W0
10.000 mm
