NTN 23960L1
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Material
Brass
Limiting Speed - Oil
1000 RPM
Limiting Speed - Grease
770 RPM
e
3.34
Y1
4.98
Y2
3.27
Series
239
Radial Internal Clearance
CN
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Static Load Rating
2320000 N
Dynamic Load Rating
1110000 N
Enclosure
Open
Weight
40.000 kg
Operating Temperature Range
-40 to 120 ºC

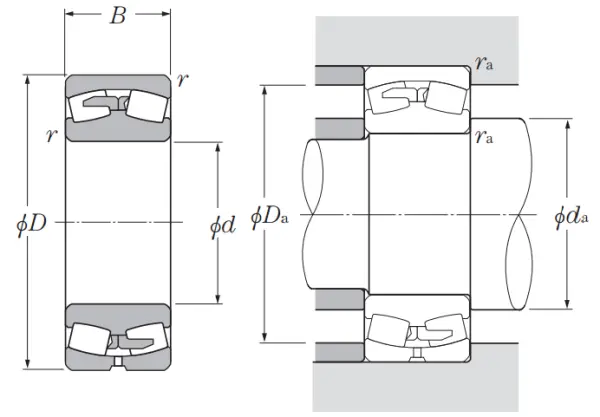

Dimensional Specifications
d
300.000 mm
D
420.000 mm
B
90.000 mm
r
3.000 mm
da min
406.000 mm
Da max
2.500 mm
ras max
0.200 mm
