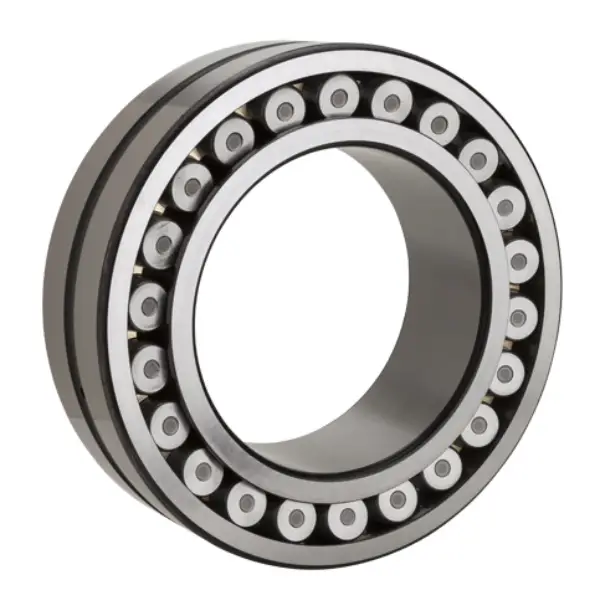

NTN 23964W33
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Steel
Limiting Speed - Oil
930 RPM
Limiting Speed - Grease
720 RPM
Series
239
Radial Internal Clearance
CN
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Static Load Rating
2460000 N
Dynamic Load Rating
1140000 N
Enclosure
Open
Weight
43.000 kg
Operating Temperature Range
-40 to 120 ºC

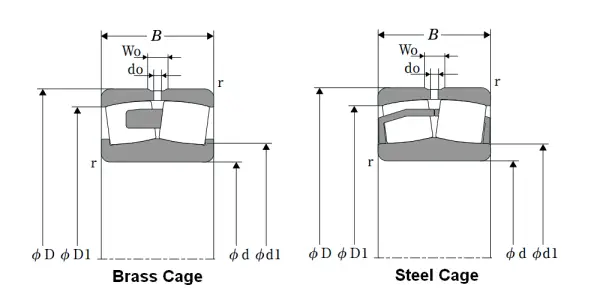

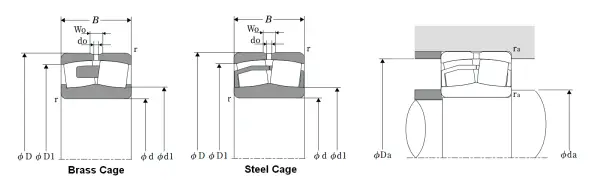

Dimensional Specifications
d
320.000 mm
D
440.000 mm
B
90.000 mm
r
3.000 mm
W0
14.000 mm
d0
8.000 mm
