NTN 23984L1
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Material
Brass
Limiting Speed - Grease
530 RPM
e
0.17
Y1
3.95
Y2
5.88
Y0
3.86
Series
239
Radial Internal Clearance
CN
Radial Internal Clearance Specification
Normal
Ring Modification
Relube
Enclosure
Open
Weight
76.200 kg

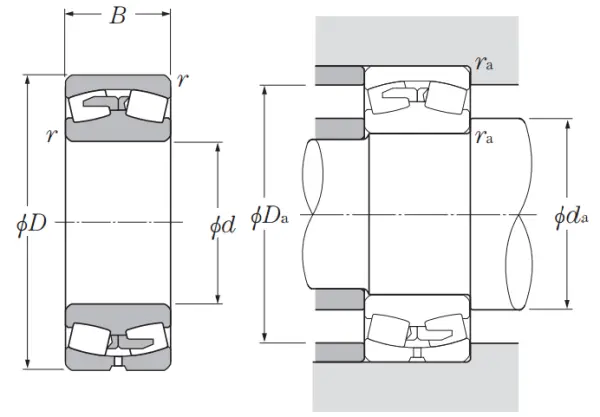

Dimensional Specifications
d
420.000 mm
D
560.000 mm
B
106.000 mm
r
4.000 mm
da min
438.000 mm
Da max
542.000 mm
ras max
3 mm
