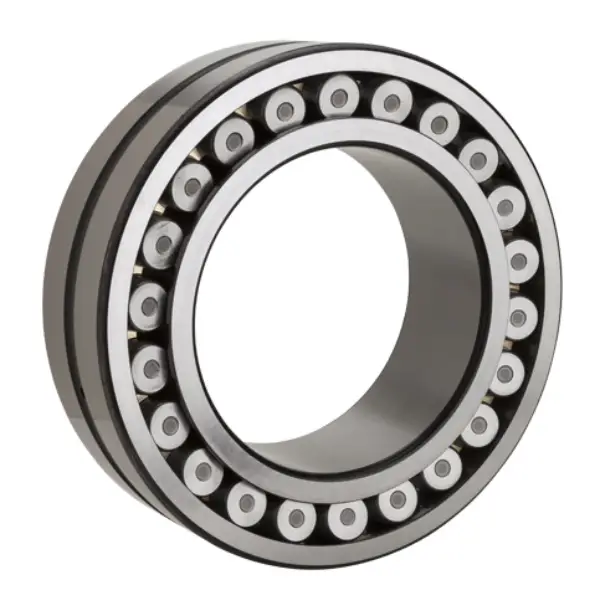

NTN 24020EAW33C3
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Series
240
Radial Internal Clearance
C3
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Enclosure
Open
Weight
2.830 kg
Operating Temperature Range
-40 to 200 ºC

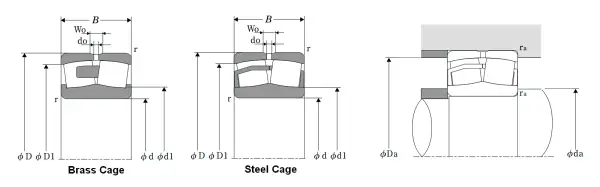

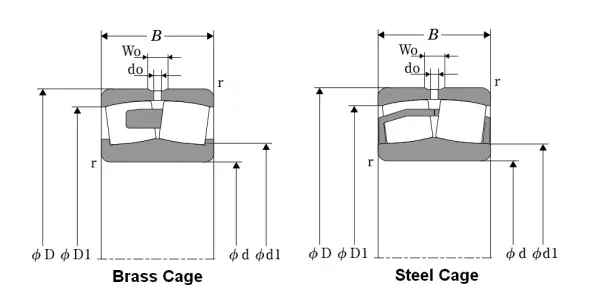

Dimensional Specifications
d
100.000 mm
D
150.000 mm
B
50.000 mm
r
1.500 mm
W0
9.000 mm
d0
5.000 mm
