NTN 24072BL1C3
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
680 RPM
Limiting Speed - Grease
520 RPM
e
0.33
Y1
2.06
Y2
3.07
Y0
2.02
Series
240
Radial Internal Clearance
C3
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Static Load Rating
6600000 N
Dynamic Load Rating
3100000 N
Enclosure
Open
Weight
147.000 kg
Operating Temperature Range
-40 to 120 ºC

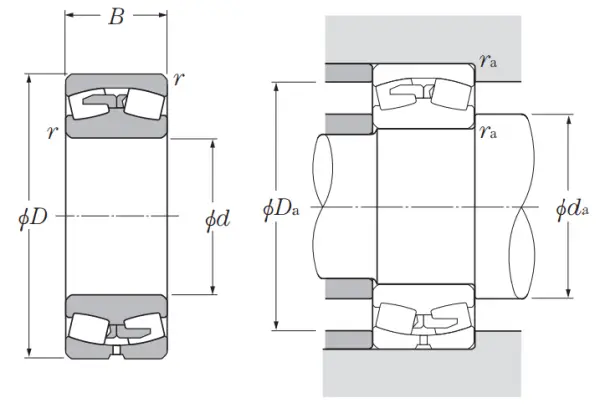

Dimensional Specifications
d
360.000 mm
D
540.000 mm
B
180.000 mm
r
4.000 mm
da min
382.000 mm
Da max
518.000 mm
ras max
4.000 mm
