NTN 24122EAW33C3
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
2700 RPM
Limiting Speed - Grease
2200 RPM
e
0.36
Y1
1.90
Y2
2.83
Y0
1.86
Series
241
Radial Internal Clearance
C3
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Static Load Rating
769000 N
Dynamic Load Rating
622000 N
Enclosure
Open
Weight
6.480 kg
Operating Temperature Range
-40 to 200 ºC

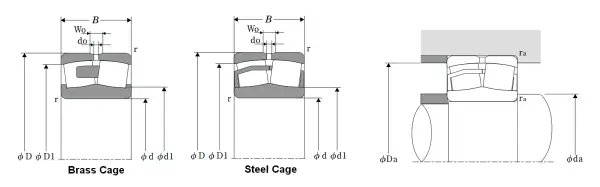

Dimensional Specifications
d
110.000 mm
D
180.000 mm
B
69.000 mm
d1
121.000 mm
D1
158.000 mm
r
2.000 mm
W0
8.000 mm
d0
4.000 mm
da min
121.000 mm
Da max
169.000 mm
ras max
2.000 mm
