NTN 24126BD1X0815C3
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
High Strength, 2 piece, Machined
Cage Material
Brass
e
0.38
Y1
1.78
Y2
2.65
Y0
1.74
Series
241
Radial Internal Clearance
C3
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

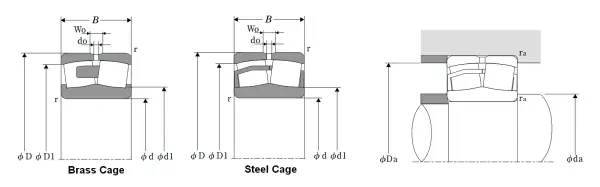

Dimensional Specifications
d
130.000 mm
D
210.000 mm
B
80.000 mm
r
2.000 mm
W0
10.000 mm
d0
6.000 mm
da min
140.000 mm
Da max
200.000 mm
ras max
2.000 mm
