NTN 24130EMW33C3
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
Limiting Speed - Oil
2000 RPM
Limiting Speed - Grease
1600 RPM
e
0.36
Y1
1.85
Y2
2.76
Y0
1.81
Series
241
Radial Internal Clearance
C3
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Static Load Rating
1590000 N
Dynamic Load Rating
1180000 N
Enclosure
Open
Weight
19.700 kg
Operating Temperature Range
-40 to 200 ºC

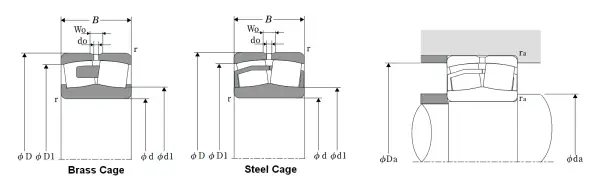

Dimensional Specifications
d
150.000 mm
D
250.000 mm
B
100.000 mm
d1
168.000 mm
D1
216.000 mm
r
2.100 mm
W0
12.000 mm
d0
6.000 mm
da min
162.000 mm
Da max
238.000 mm
ras max
2.100 mm
