NTN 24134EAW33C3
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
1700 RPM
Limiting Speed - Grease
1400 RPM
e
0.35
Y1
1.91
Y2
2.85
Y0
1.87
Series
241
Radial Internal Clearance
C3
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Static Load Rating
1990000 N
Dynamic Load Rating
1410000 N
Enclosure
Open
Weight
25.570 kg
Operating Temperature Range
-40 to 200 ºC

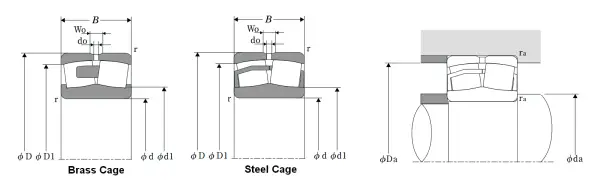

Dimensional Specifications
d
170.000 mm
D
280.000 mm
B
109.000 mm
d1
193.000 mm
D1
243.000 mm
r
2.100 mm
W0
14.000 mm
d0
6.000 mm
da min
182.000 mm
Da max
268.000 mm
ras max
2.100 mm
