NTN 24136EMW33
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
Limiting Speed - Oil
1600 RPM
Limiting Speed - Grease
1300 RPM
e
0.36
Y1
1.87
Y2
2.79
Y0
1.83
Series
241
Radial Internal Clearance
CN
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Static Load Rating
2290000 N
Dynamic Load Rating
1660000 N
Enclosure
Open
Weight
33.500 kg
Operating Temperature Range
-40 to 200 ºC

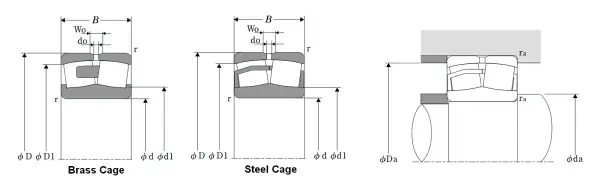

Dimensional Specifications
d
180.000 mm
D
300.000 mm
B
118.000 mm
d1
202.000 mm
D1
259.000 mm
r
3.000 mm
W0
15.000 mm
d0
7.000 mm
da min
194.000 mm
Da max
286.000 mm
ras max
3 mm
