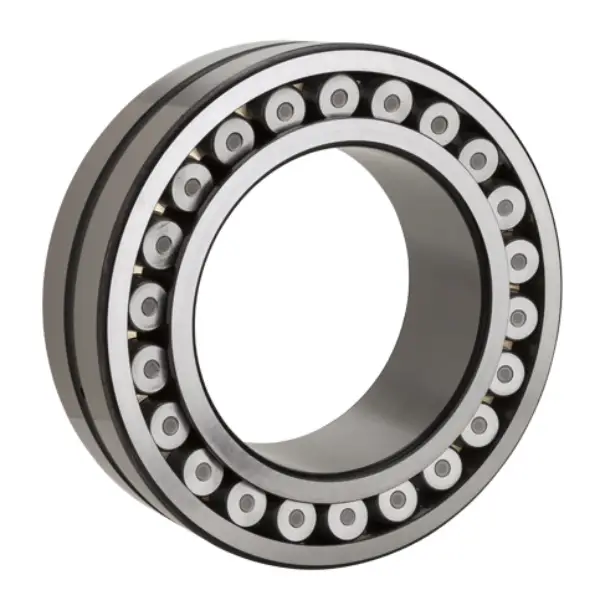

NTN 24140BW33
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
High Strength, 2 piece, Machined
Cage Material
Brass
Series
241
Radial Internal Clearance
CN
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Static Load Rating
2890000 N
Dynamic Load Rating
1620000 N
Enclosure
Open
Weight
51.800 kg
Dimensional Specifications
d
200.000 mm
D
340.000 mm
B
140.000 mm
r
3.000 mm
W0
17.000 mm
