NTN 24140EMW33
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
Limiting Speed - Oil
1400 RPM
Limiting Speed - Grease
1100 RPM
e
0.39
Y1
1.74
Y2
2.59
Y0
1.70
Series
241
Radial Internal Clearance
CN
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Static Load Rating
2930000 N
Dynamic Load Rating
2130000 N
Enclosure
Open
Weight
51.500 kg
Operating Temperature Range
-40 to 200 ºC

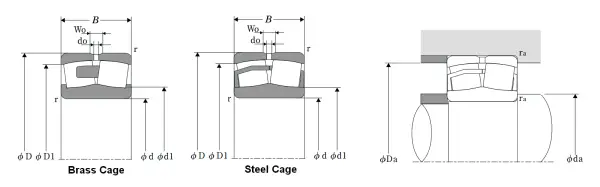

Dimensional Specifications
d
200.000 mm
D
340.000 mm
B
140.000 mm
d1
224.000 mm
D1
291.000 mm
r
3.000 mm
W0
17.000 mm
d0
8.000 mm
da min
214.000 mm
Da max
326.000 mm
ras max
3 mm
