NTN 24152BL1W33C3
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
Limiting Speed - Oil
920 RPM
Limiting Speed - Grease
710 RPM
e
0.41
Y1
1.63
Y2
2.43
Y0
1.60
Series
241
Radial Internal Clearance
C3
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Static Load Rating
4600000 N
Dynamic Load Rating
2510000 N
Enclosure
Open
Weight
118.000 kg
Operating Temperature Range
-40 to 120 ºC

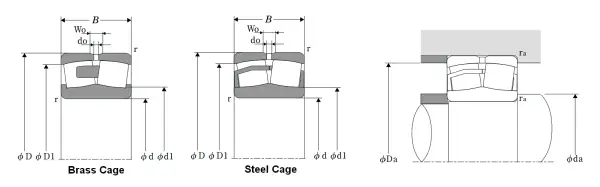

Dimensional Specifications
d
260.000 mm
D
440.000 mm
B
180.000 mm
r
3.000 mm
W0
27.000 mm
d0
16.000 mm
da min
278.000 mm
Da max
422.000 mm
ras max
3 mm
