NTN 24160BW33C3
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Steel
Limiting Speed - Oil
780 RPM
Limiting Speed - Grease
600 RPM
e
0.40
Y1
1.69
Y2
2.51
Y0
1.65
Series
241
Radial Internal Clearance
C3
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Static Load Rating
6400000 N
Dynamic Load Rating
3300000 N
Enclosure
Open
Weight
155.449 kg
Operating Temperature Range
-40 to 120 ºC

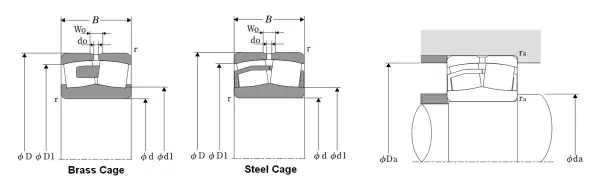

Dimensional Specifications
d
300.000 mm
D
500.000 mm
B
200.000 mm
r
5.000 mm
W0
12.000 mm
d0
16.000 mm
da min
322.000 mm
Da max
478.000 mm
ras max
4.000 mm
