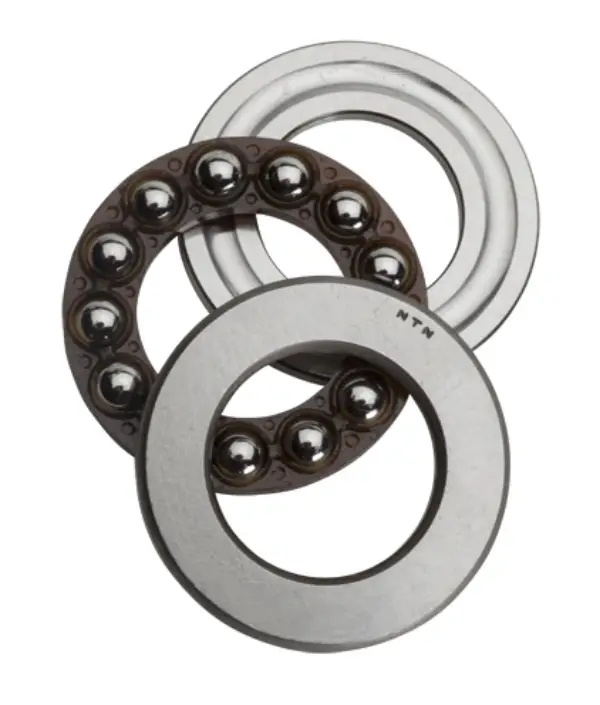

NTN 2901
Single Direction Thrust Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Thrust Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
None
Seal Material
None
Precision
ISO Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
18900 N
Dynamic Load Rating
13100 N
Enclosure
Open
Weight
0.036 kg
Operating Temperature Range
-40 to 120 ºC

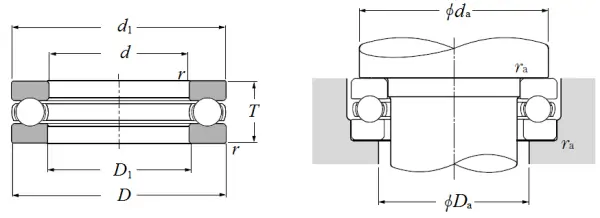

Dimensional Specifications
d
12.000 mm
D1
12.200 mm
d1
28.000 mm
T
12.000 mm
r
0.600 mm
