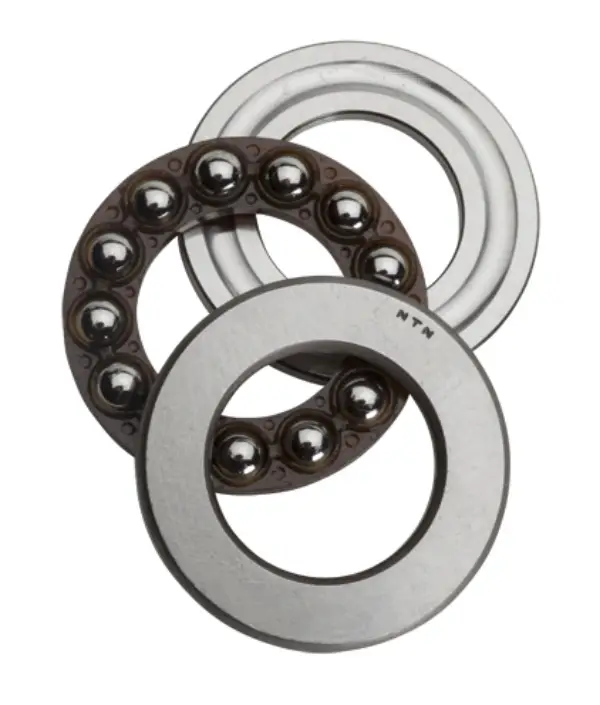

NTN 2908

Single Direction Thrust Ball Bearing
(BRAND):NTN
(Availability):In Stock

Detailed data of

2908

Technical Specifications

Type Thrust Ball Bearing
Bore Type Round
Outside Ring Type Straight
Material High Carbon Chrome Steel
Cage Type Pressed
Cage Material Steel
Ball Material Steel
Seal Type None
Seal Material None
Precision ISO Class 0
Configuration One
Radial Internal Clearance CN
Static Load Rating 69800 N
Dynamic Load Rating 31400 N
Enclosure Open
Weight 0.154 kg
Operating Temperature Range -40 to 120 ºC

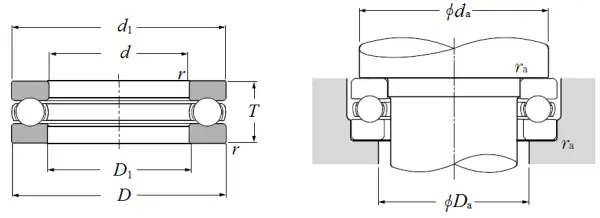

Dimensional Specifications

d 40.000 mm
D1 40.200 mm
d1 60.000 mm
T 16.000 mm
r 0.600 mm

NTN 2908 Is a Single Direction Thrust Ball Bearing

What type of bearing is the NTN 2908?

The NTN 2908 belongs to the Single Direction Thrust Ball Bearing series. It is listed under NTN ball bearings and thrust ball bearings. Its configuration is one, with a round bore, straight outside ring, open enclosure, and no seals.

  • Brand: NTN
  • Model: 2908
  • Series: Single Direction Thrust Ball Bearing
  • Bore type: Round
  • Outside ring type: Straight
  • Enclosure: Open

NTN 2908 Uses Steel Bearing Components

What materials and precision details are specified?

The product data specifies high carbon chrome steel as the bearing material, with a pressed steel cage and steel balls. Seal type and seal material are both listed as none. Precision is ISO Class 0, radial internal clearance is CN, and the stated operating temperature range is -40 to 120 ºC.

  • Bearing material: High carbon chrome steel
  • Cage: Pressed steel cage
  • Ball material: Steel
  • Precision: ISO Class 0
  • Internal clearance: CN
  • Weight: 0.154 kg

NTN 2908 Has Documented Dimensions and Load Ratings

What measurements and load values are provided for the 2908?

The dimensional specifications list d as 40.000 mm, D1 as 40.200 mm, d1 as 60.000 mm, T as 16.000 mm, and r as 0.600 mm. The stated static load rating is 69800 N, and the dynamic load rating is 31400 N.

  1. Bore d: 40.000 mm
  2. D1: 40.200 mm
  3. d1: 60.000 mm
  4. Height T: 16.000 mm
  5. Chamfer r: 0.600 mm
  6. Static load rating: 69800 N
  7. Dynamic load rating: 31400 N
