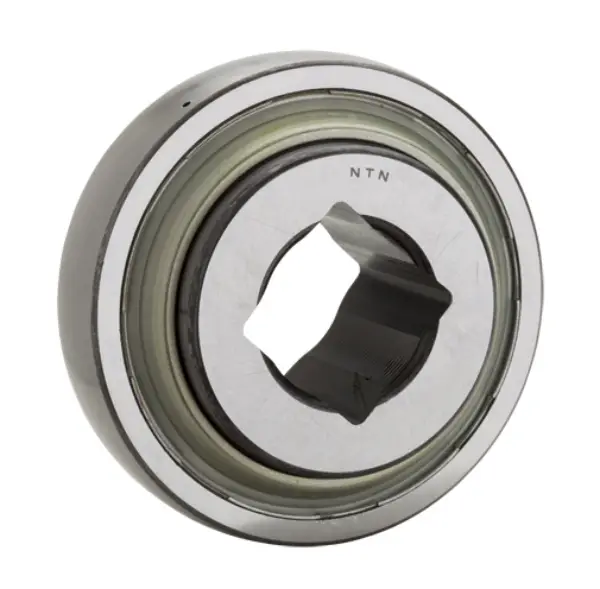

NTN 2AS09-1.1/4D1
Farm Implement Square Bore Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Heavy Duty Disc Bearing
Bore Type
Square
Outside Ring Type
Spherical
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Lubrication
Relubricated
Static Load Rating
20400 N
Dynamic Load Rating
32500 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

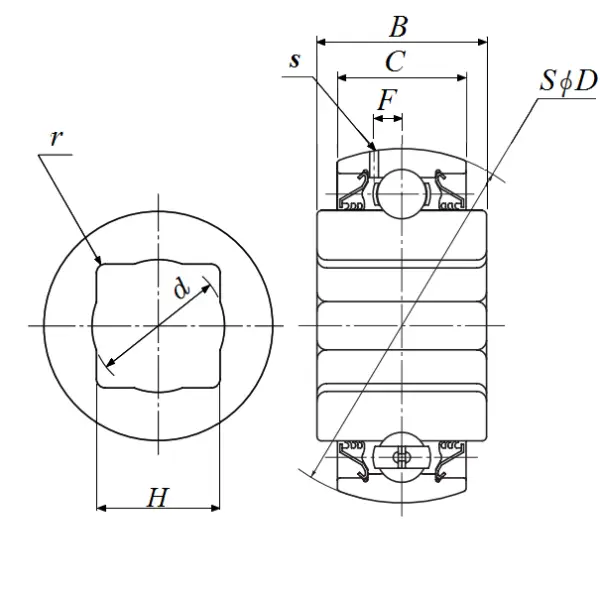

Dimensional Specifications
H
32.766 mm
D
85.000 mm
C
30.200 mm
B
36.500 mm
d
34.800 mm
r
2.250 mm
F
6.700 mm
s
2.2 mm
D - Tolerance
0/-0.015 mm
H - Tolerance
0.127/-0.127 mm
C - Tolerance
0/-0.120 mm
B - Tolerance
0/-0.120 mm
Shaft Size
31.75 mm
